Bild | Typ | max. Arbeitshöhe | max. Tragkraft | Anschlagösen | System | Artikel-Nr. | Preis (zzgl. ges. MwSt.) |
Flexiguard™ Auslegersystem M100 Basis 8530873 | Flexiguard M100 * | CS-8530873 | 13.683,00 € | ||||
Flexiguard™ Auslegersystem M100 Basis 8530870 | Flexiguard M100 * | CS-8530870 | 18.830,60 € | ||||
Flexiguard™ Auslegersystem M100 Basis 8530869 | Flexiguard M100 * | CS-8530869 | 18.372,40 € | ||||
Flexiguard™ Auslegersystem M100 Basis 8530871 | Flexiguard M100 * | CS-8530871 | 1.910,45 € | ||||
Flexiguard™ Auslegersystem M100 Basis 8530872 | Flexiguard M100 * | CS-8530872 | 3.283,80 € | ||||
Flexiguard™ Auslegersystem M200 Basis 8530887 | Flexiguard M200 * | CS-8530887 | 26.470,00 € | ||||
Flexiguard™ Auslegersystem M200 Basis 8530886 | Flexiguard M200 * | CS-8530886 | 25.082,35 € | ||||
Flexiguard™ Auslegersystem M200 Basis 8530888 | Flexiguard M200 * | CS-8530888 | 3.529,00 € | ||||
Flexiguard™ Auslegersystem M200 Basis 8530889 | Flexiguard M200 * | CS-8530889 | 5.684,70 € | ||||
Flexiguard™ Auslegersystem M200 Mast 8530895 | 3.8-4.6 m | 141 kg | 2 | Flexiguard M200 * | CS-8530895 | 25.067,95 € | |
Flexiguard™ Auslegersystem M100 Mast 8530874 | 3.0-4.6 m | 141 kg | 1 | Flexiguard M100 * | CS-8530874 | 15.664,05 € | |
Flexiguard™ Auslegersystem M100 Mast 8530875 | 3.8-6.1 m | 141 kg | 1 | Flexiguard M100 * | CS-8530875 | 16.015,80 € | |
Flexiguard™ Auslegersystem M200 Mast 8530891 | 3.8-4.6 m | 141 kg | 1 | Flexiguard M200 * | CS-8530891 | 24.371,70 € | |
Flexiguard™ Auslegersystem M100 Mast 8530882 | 4.6-6.1 m | 141 kg | 1 | Flexiguard M100 * | CS-8530882 | 7.077,20 € | |
Flexiguard™ Auslegersystem M200 Mast 8530896 | 4.5-6.1 m | 141 kg | 2 | Flexiguard M200 * | CS-8530896 | 25.023,70 € | |
Flexiguard™ Auslegersystem M100 Mast 8530876 | 4.6-7.6 m | 141 kg | 2 | Flexiguard M100 * | CS-8530876 | 16.410,50 € | |
Flexiguard™ Auslegersystem M200 Mast 8530899 | 4.6-6.1 m | 141 kg | 1 | Flexiguard M200 * | CS-8530899 | 12.728,40 € | |
Flexiguard™ Auslegersystem M200 Mast 8530902 | 4.6-6.1 m | 141 kg | 2 | Flexiguard M200 * | CS-8530902 | 13.537,05 € | |
Flexiguard™ Auslegersystem M200 Mast 8530892 | 4.5-6.1 m | 141 kg | 2 | Flexiguard M200 * | CS-8530892 | 24.328,65 € | |
Flexiguard™ Auslegersystem M200 Mast 8530897 | 5.3-7.6 m | 141 kg | 2 | Flexiguard M200 * | CS-8530897 | 25.551,25 € | |
Flexiguard™ Auslegersystem M100 Mast 8530877 | 5.3-9.1 m | 141 kg | 1 | Flexiguard M100 * | CS-8530877 | 17.439,30 € | |
Flexiguard™ Auslegersystem M200 Mast 8530893 | 5.3-7.6 m | 141 kg | 1 | Flexiguard M200 * | CS-8530893 | 24.855,00 € | |
Flexiguard™ Auslegersystem M200 Mast 8530894 | 6.0-9.1 m | 141 kg | 1 | Flexiguard M200 * | CS-8530894 | 25.580,00 € | |
Flexiguard™ Auslegersystem M100 Mast 8530883 | 6.1-7.6 m | 141 kg | 1 | Flexiguard M100 * | CS-8530883 | 7.724,35 € | |
Flexiguard™ Auslegersystem M200 Mast 8530898 | 6.0-9.1 m | 141 kg | 2 | Flexiguard M200 * | CS-8530898 | 26.272,60 € | |
Flexiguard™ Auslegersystem M200 Mast 8530900 | 6.1-7.6 m | 141 kg | 1 | Flexiguard M200 * | CS-8530900 | 13.087,25 € | |
Flexiguard™ Auslegersystem M200 Mast 8530903 | 6.1-7.6 m | 141 kg | 2 | Flexiguard M200 * | CS-8530903 | 13.895,95 € | |
Flexiguard™ Auslegersystem M100 Mast 8530884 | 7.6-9.1 m | 141 kg | 1 | Flexiguard M100 * | CS-8530884 | 8.323,70 € | |
Flexiguard™ Auslegersystem M200 Mast 8530901 | 7.6-9.1 m | 141 kg | 1 | Flexiguard M200 * | CS-8530901 | 13.702,15 € | |
Flexiguard™ Auslegersystem M200 Mast 8530904 | 7.6-9.1 m | 141 kg | 2 | Flexiguard M200 * | CS-8530904 | 14.510,80 € |

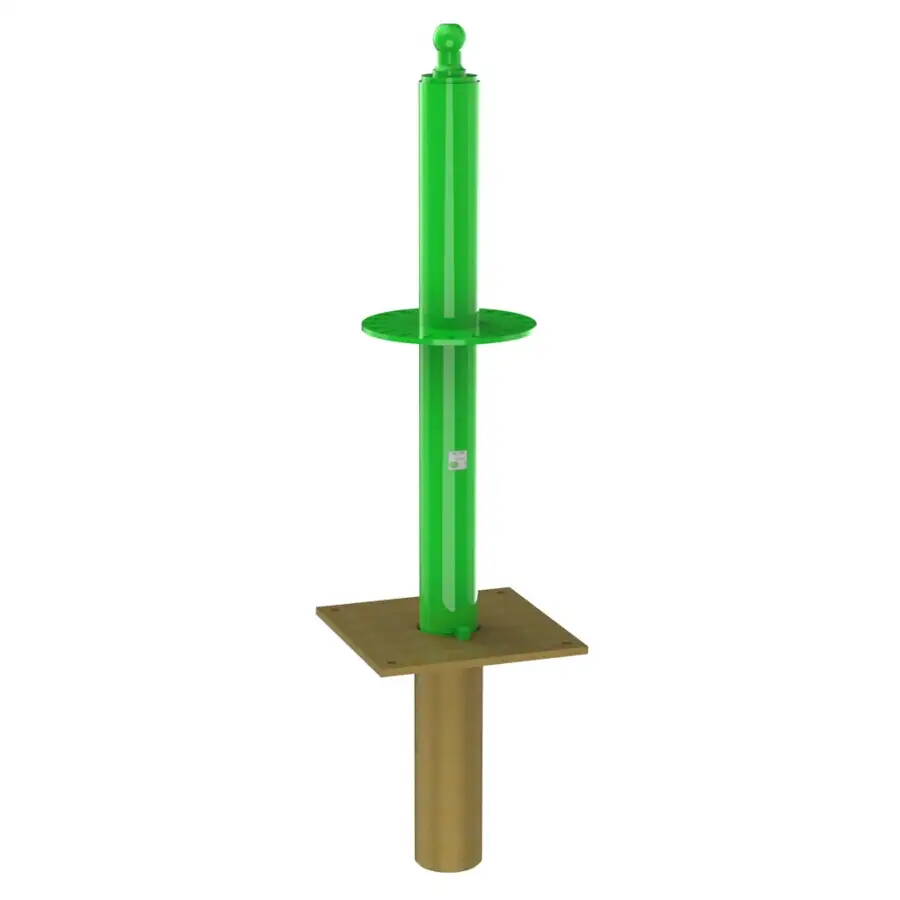

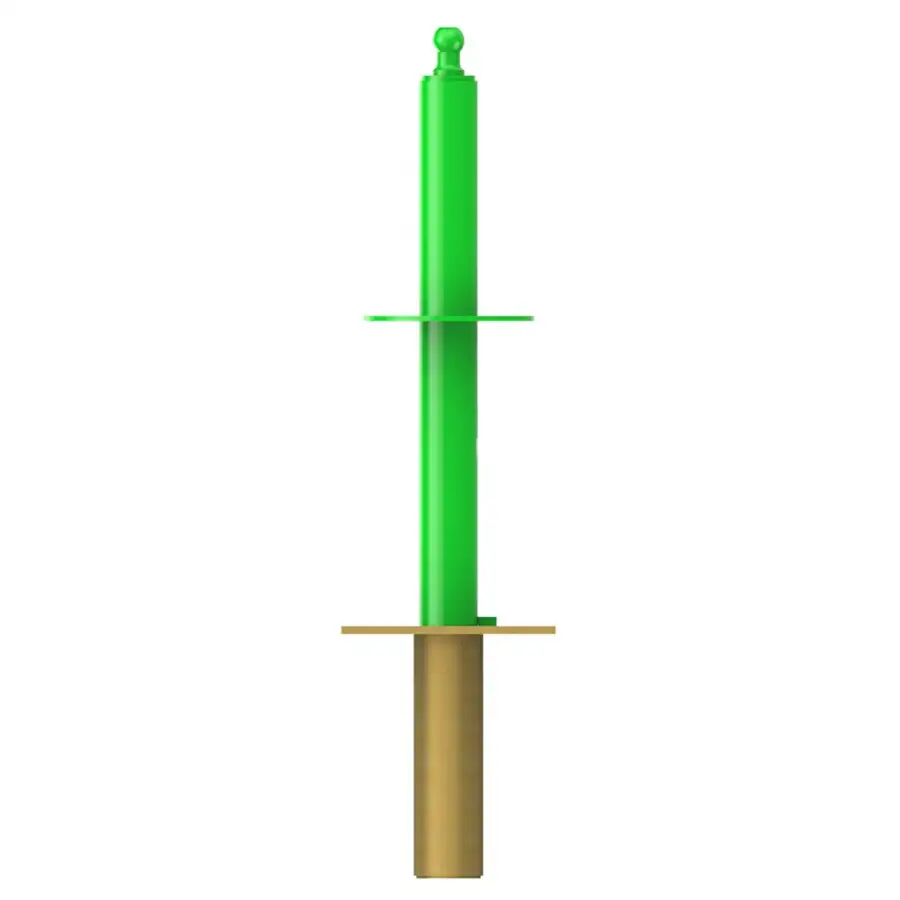

Die Basis zur Bodenmontage ist für die Verankerung an zugelassenen Strukturen ausgelegt und dient als Montagepunkt für das von 3M zugelassene modulare Auslegersystem M200.
Dieses Flexiguard System ist für den Gebrauch als Teil eines kompletten Absturzsicherungs- oder Rettungssystems vorgesehen.
Die Montagefläche muss eben sein und eine Neigung von nicht mehr als plus oder minus 1° aufweisen. Ein Loch von Ø 72 mm wird 578 mm tief in den vorhandenen Beton gebohrt. Das Bohrloch wird mit Epoxidharz gefüllt und der Montagepfosten nach Aushärtung bis zum Drehblock abgesenkt.
